Pages

A page is a collection of related sections. A typical page definition consists of a label, inlineRendering (optional) and a list of sections. The engine uses the page’s label to identify it from other pages; that being said, it’s mandatory to keep the page’s label unique. Below is an example of a form with one page and section. The section has 4 questions labelled:

{
  "name": "HTS Retrospective Form",
  "pages": [
    {
      "label": "Eligibility Screening",
      "sections": [
        {
          "label": "Testing history",
          "isExpanded": "true",
          "questions": [
            {
              "label": "What is the reason for conducting the HIV test?",
              "type": "obs",
              "questionOptions": {
                "rendering": "select",
                "concept": "ce3816e7-082d-496b-890b-a2b169922c22",
                "answers": [
                  {
                    "concept": "7398c91a-8db8-480d-8130-1a92cc208ded",
                    "label": "Inconclusive HIV Result",
                    "conceptMappings": []
                  },
                  {
                    "concept": "a6ad599d-2bc4-47b7-81fe-a38e88867c1d",
                    "label": "Self Initiative",
                    "conceptMappings": []
                  },
                  {
                    "concept": "0e65e5fd-a1d8-4730-a991-75a1d703cba6",
                    "label": "HIV Self Test Positive",
                    "conceptMappings": []
                  },
                  {
                    "concept": "6e768c50-a239-45ff-9920-2c6a9352320e",
                    "label": "Index Client Testing",
                    "conceptMappings": []
                  },
                  {
                    "concept": "cb099534-b609-4561-9d4c-dd2fc74cedaf",
                    "label": "Assisted Partner Notification (APN)",
                    "conceptMappings": []
                  },
                  {
                    "concept": "5622AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                    "label": "Other"
                  }
                ]
              },
              "id": "reasonForTesting"
            },
            {
              "label": "Has the client ever been tested for HIV?",
              "type": "obs",
              "questionOptions": {
                "rendering": "radio",
                "concept": "1492AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                "answers": [
                  {
                    "label": "Yes",
                    "concept": "cf82933b-3f3f-45e7-a5ab-5d31aaee3da3"
                  },
                  {
                    "label": "No",
                    "concept": "488b58ff-64f5-4f8a-8979-fa79940b1594"
                  },
                  {
                    "concept": "1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                    "label": "Unknown"
                  }
                ]
              },
              "id": "everTestedForHIV"
            },
            {
              "label": "How recently has the client been tested for HIV within any of the following periods?",
              "type": "obs",
              "questionOptions": {
                "rendering": "select",
                "concept": "e7947a45-acff-49e1-ba1c-33e43a710e0d",
                "answers": [
                  {
                    "concept": "909edba5-c9b1-44e3-92ee-f95269964fe1",
                    "label": "0-3 Months",
                    "conceptMappings": []
                  },
                  {
                    "concept": "8df190d5-7a65-4b53-9b4a-b35b9cf400b1",
                    "label": "3-6 Months",
                    "conceptMappings": []
                  },
                  {
                    "concept": "c85e6df3-7184-400e-a686-f41aaae08113",
                    "label": "6-12 Months",
                    "conceptMappings": []
                  },
                  {
                    "concept": "8de5bf3f-8058-4735-ae50-b5a986b2362b",
                    "label": "More Than 12 Months",
                    "conceptMappings": []
                  },
                  {
                    "concept": "1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                    "label": "Unknown"
                  }
                ]
              },
              "id": "durationSinceLastHIVTest"
            },
            {
              "label": "What was the result of the last HIV test?",
              "type": "obs",
              "questionOptions": {
                "rendering": "select",
                "concept": "159427AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                "answers": [
                  {
                    "concept": "6378487b-584d-4422-a6a6-56c8830873ff",
                    "label": "Positive",
                    "conceptMappings": []
                  },
                  {
                    "concept": "664AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                    "label": "Negative"
                  },
                  {
                    "concept": "7398c91a-8db8-480d-8130-1a92cc208ded",
                    "label": "Inconclusive",
                    "conceptMappings": []
                  },
                  {
                    "concept": "1067AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",
                    "label": "Unknown"
                  }
                ]
              },
              "id": "lastHIVTestResult"
            }
          ]
        }
      ]
    }
  ],
  "uuid": "xxxx",
  "encounterType": "79c1f50f-f77d-42e2-ad2a-d29304dde2fe"
}

Here's how this page definition gets rendered:

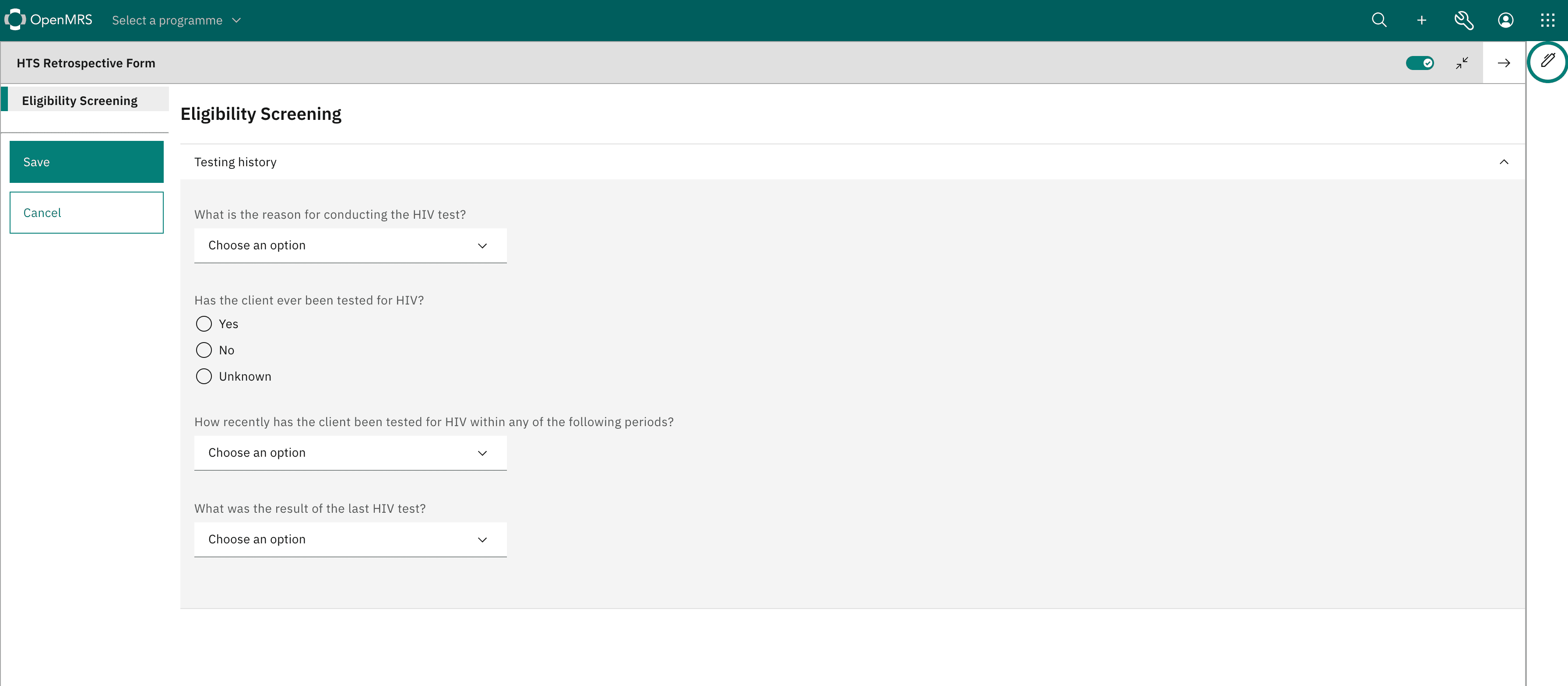

Single-page form layout

In practice, your form will likely have more than one page. You can cycle through the pages by infinitely scrolling or selecting the desired page from the left sidebar. Here's how a form with multiple pages would look like:

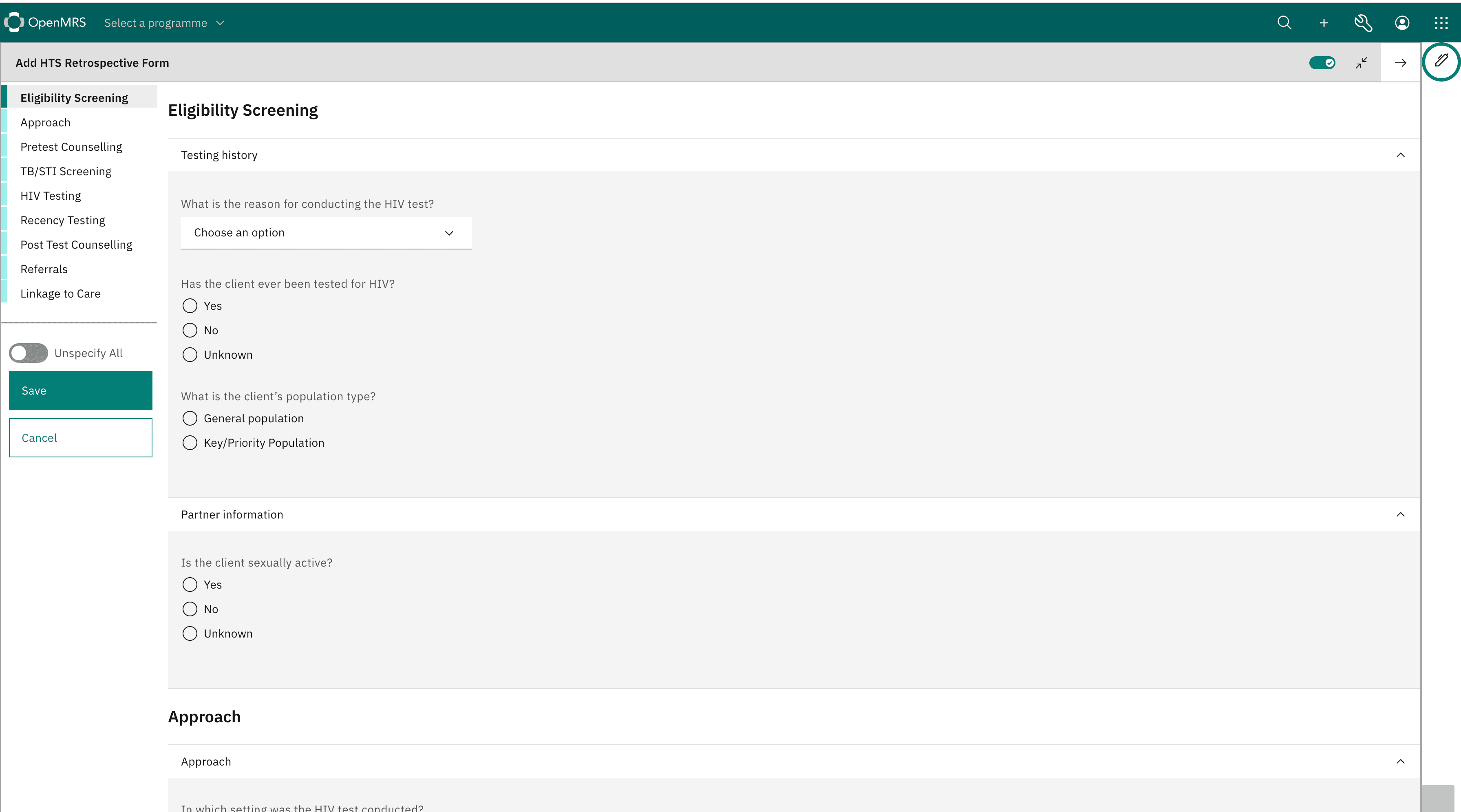

Multiple-page form layout
